Packed & Fluidized Bed Reactor System: CO2 Capture Mark IV

Packed & Fluidized Bed Reactor System: CO2 Capture Mark IV

High-performance prototype designed for research and testing of CO2 capture processes. Equipped with precision control systems and chemically resistant construction for continuous operation.

Description

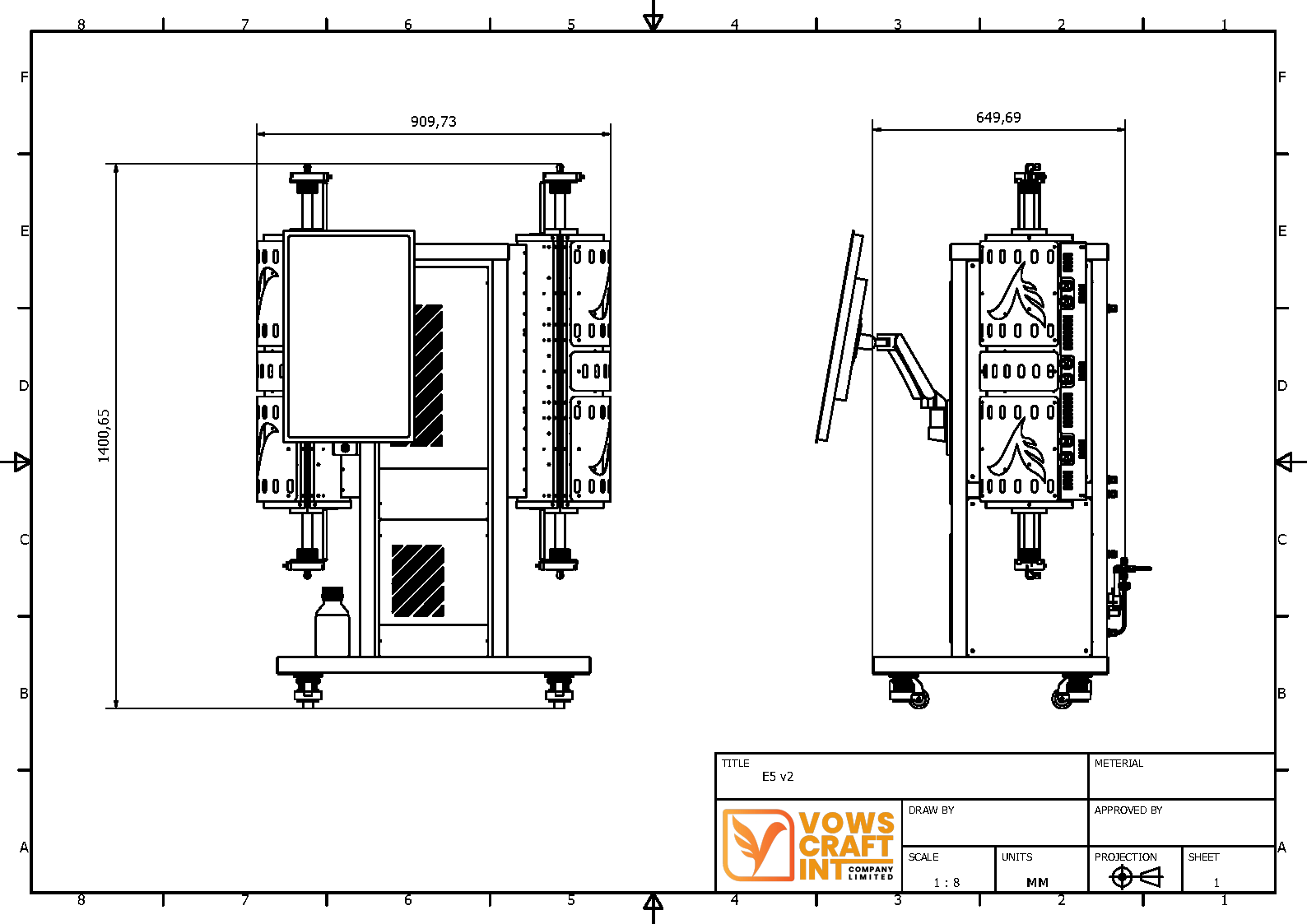

Drawing
3D

Key Features

Multi-Gas Feed System — Supports CO2, N2, and compressed air with high-accuracy Mass Flow Controllers
Dual Quartz Reactor — Two vertical Fixed Bed Reactors (Quartz), operable in parallel or alternating mode for comparative testing
Tube Furnace Heating (2.4 kW) — Uniform heating up to 200 °C per unit using ceramic fiber insulation
Advanced Monitoring — Full sensor suite covering pressure, temperature, humidity, and CO2 concentration
Smart Control & Safety — HMI-based operation with Emergency Push Button and ESD (Emergency Shut Down)
